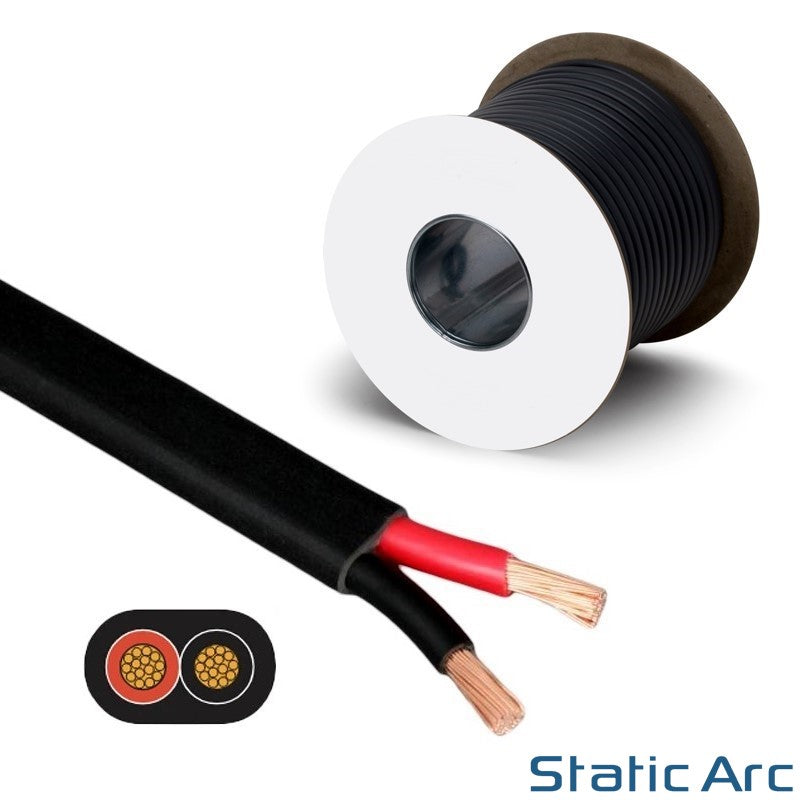

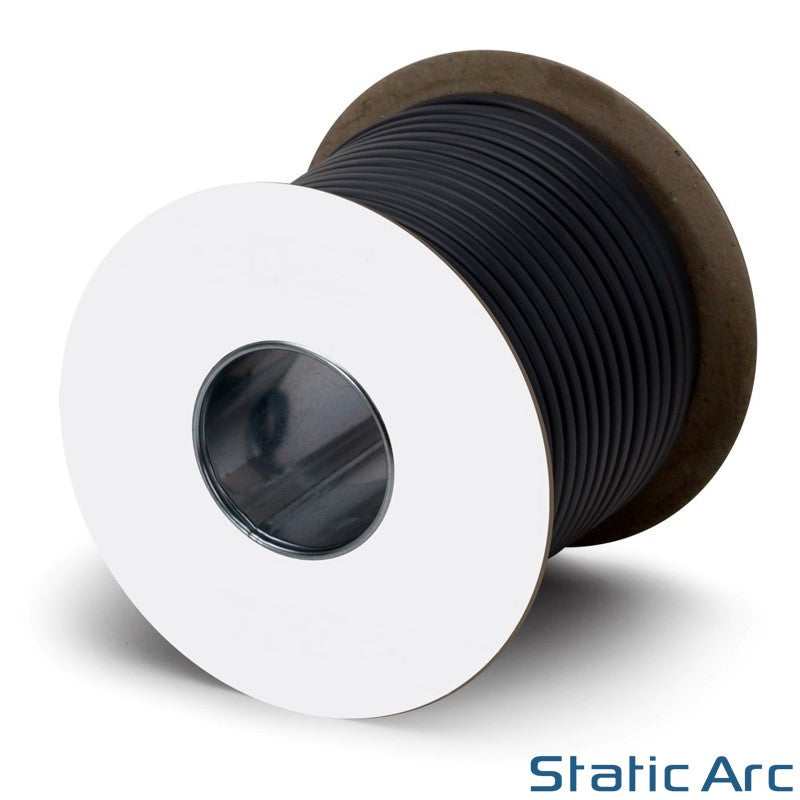

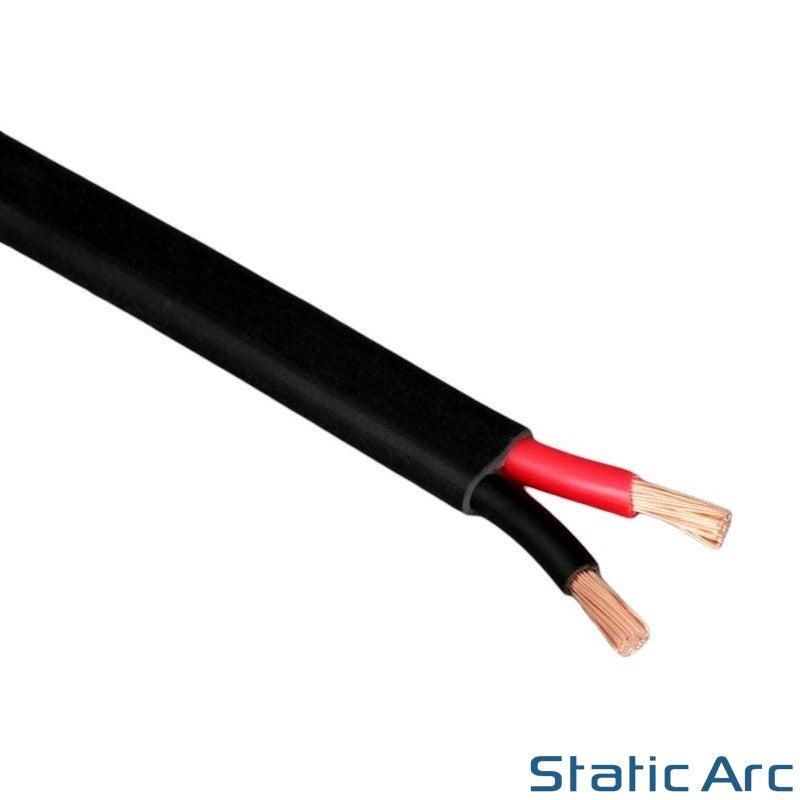

- Flat design makes this cable ideal for space saving applications, fitting through tight gaps and neat cable management such as routing under carpets, along walls etc. Ideal for automotive, computing and consumer electronics, lighting and control systems, rewiring and extensions.
- Ideal for DC 5V, 12V, 24V systems
- Flexible and durable black PVC cable, for long lasting use
- 2 Core, red and black
- Stranded pure copper conductor
- Cut to any length up to 100m (You choose)
- Temperature rating: -10°C to +60°C
- Standards: RoHS and CE Certified, BS6500 and BS7919 compliant
AVAILABLE CABLES:
- 0.5mm² - (16 strands/0.20mm), Current Ratings: 11 Amps, Size: 2.5x5mm
- 0.75mm² - (24 strands/0.20mm), Current Ratings: 14 Amps, Size: 2.5x5mm
- 1.0mm² - (32 strands/0.20mm), Current Ratings: 16.5 Amps, Size: 3x5mm
- 1.5mm² - (30 strands/0.25mm), Current Ratings: 21 Amps, Size: 3.5x6mm
- 2.0mm² - (28 strands/0.30mm), Current Ratings: 25 Amps, Size: 4x6.5mm
- 2.5mm² - (50 strands/0.25mm), Current Ratings: 29 Amps, Size: 4x7mm
- 3.0mm² - (44 strands/0.30mm), Current Ratings: 33 Amps, Size: 4.5x7.5mm
- 4.5mm² - (65 strands/0.30mm), Current Ratings: 42 Amps, Size: 6x9.5mm
CHOOSE THE CABLE SIZE YOU REQUIRE FROM THE OPTIONS AT THE TOP OF THE PAGE
