FEATURES
- Suitable for cutting all forms of metals, steel, aluminium and copper. Also will cut through rust and paint.
- Adjustable power settings and digital display to read and set current.
- Adjustable gas delay to set post flow when trigger is released.
- Inbuilt pressure gauge to manage air flow.
- Non-contact pilot arc function, maintains a stable arc over irregular surfaces and low frequency for use around sensitive electrical equipment.
- Smooth cutting surface and higher cutting speed compare with standard flame cutters and angle grinders.
- Auto protection from over-heat and over-current
- Lightweight and portable with carry handle
- Efficient IGBT inverter technology
- Fitted with UK 3 pin mains plug
- 1 YEAR WARRANTY
SPECS
- Input voltage: AC 230V, 50Hz
- Power rating: 4kW
- Output range: 20-40A
- Duty cycle: 100% @ 30A, 60% @ 40A
- Cut thickness: Up to 10mm
- Torch model and consumables: PT31 (Different shield cup, message us for details)
- Ideal operating air compressor: 65PSI (4.5kg/cm2) @ 3.5CFM
- PU Air hose size: 8mm ID
- Standards: CE, IP23, B class insulation
- Machine weight: 7kg
- Machine size: 430 x 150 x 300mm

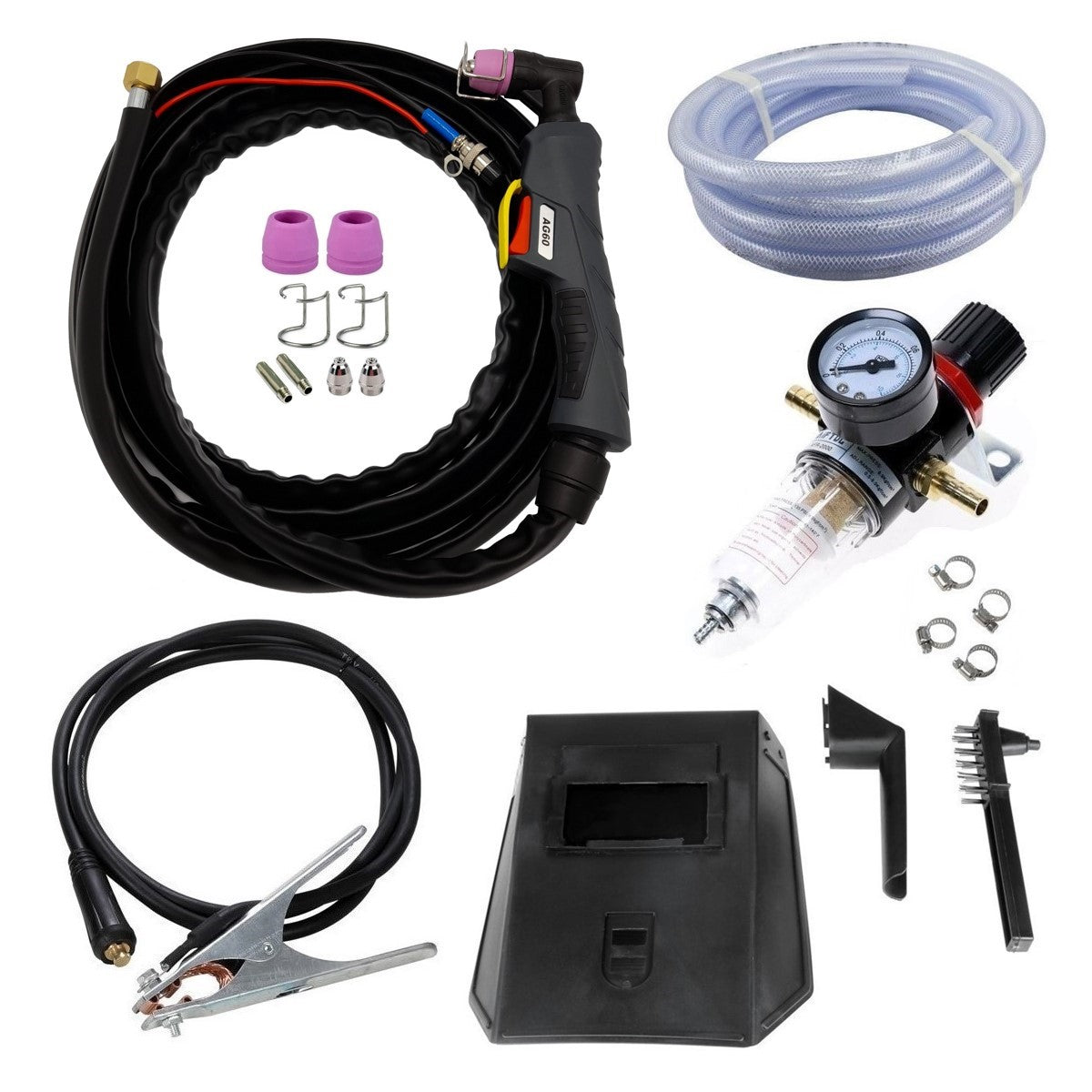

PACKAGE

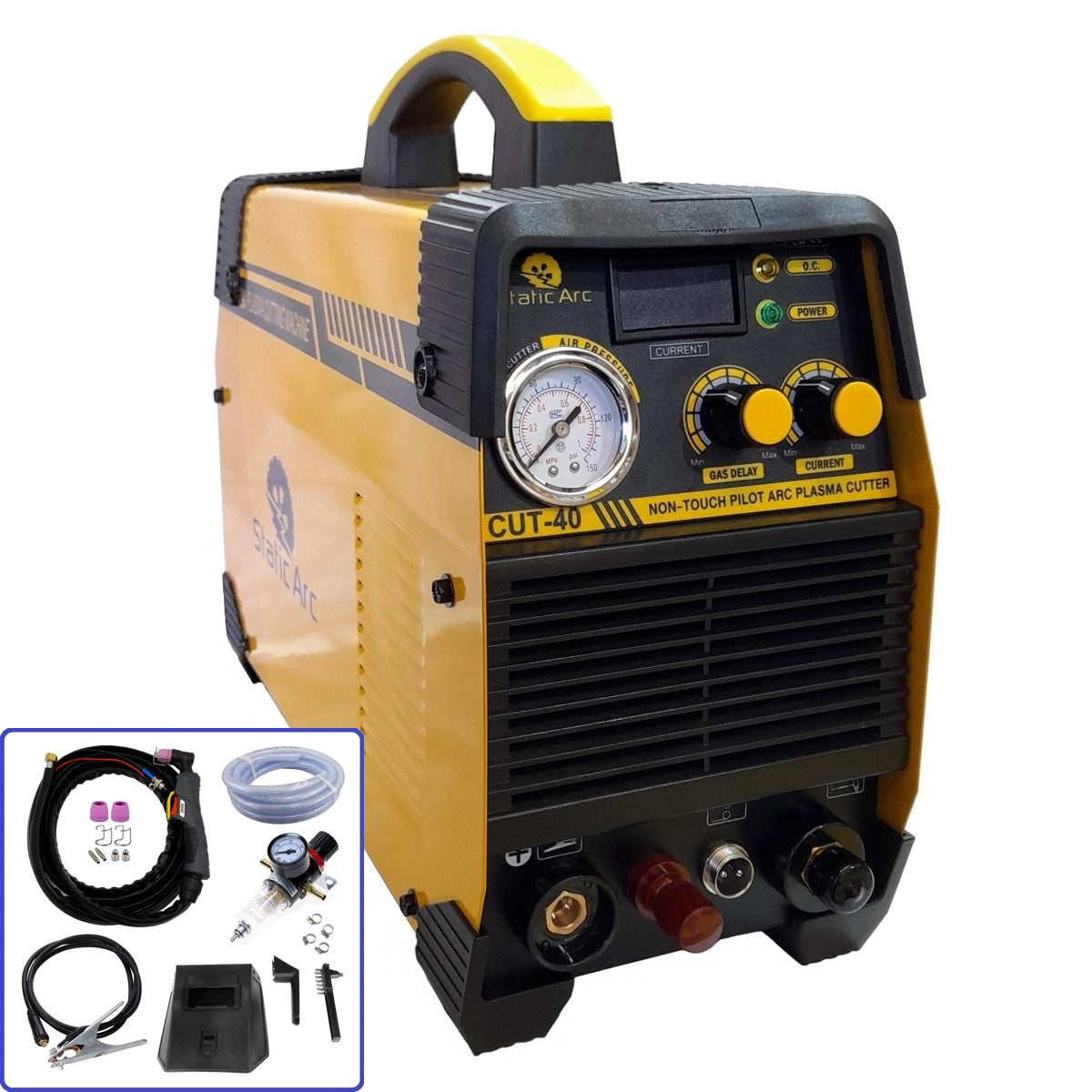

- CUT40 plasma cutter

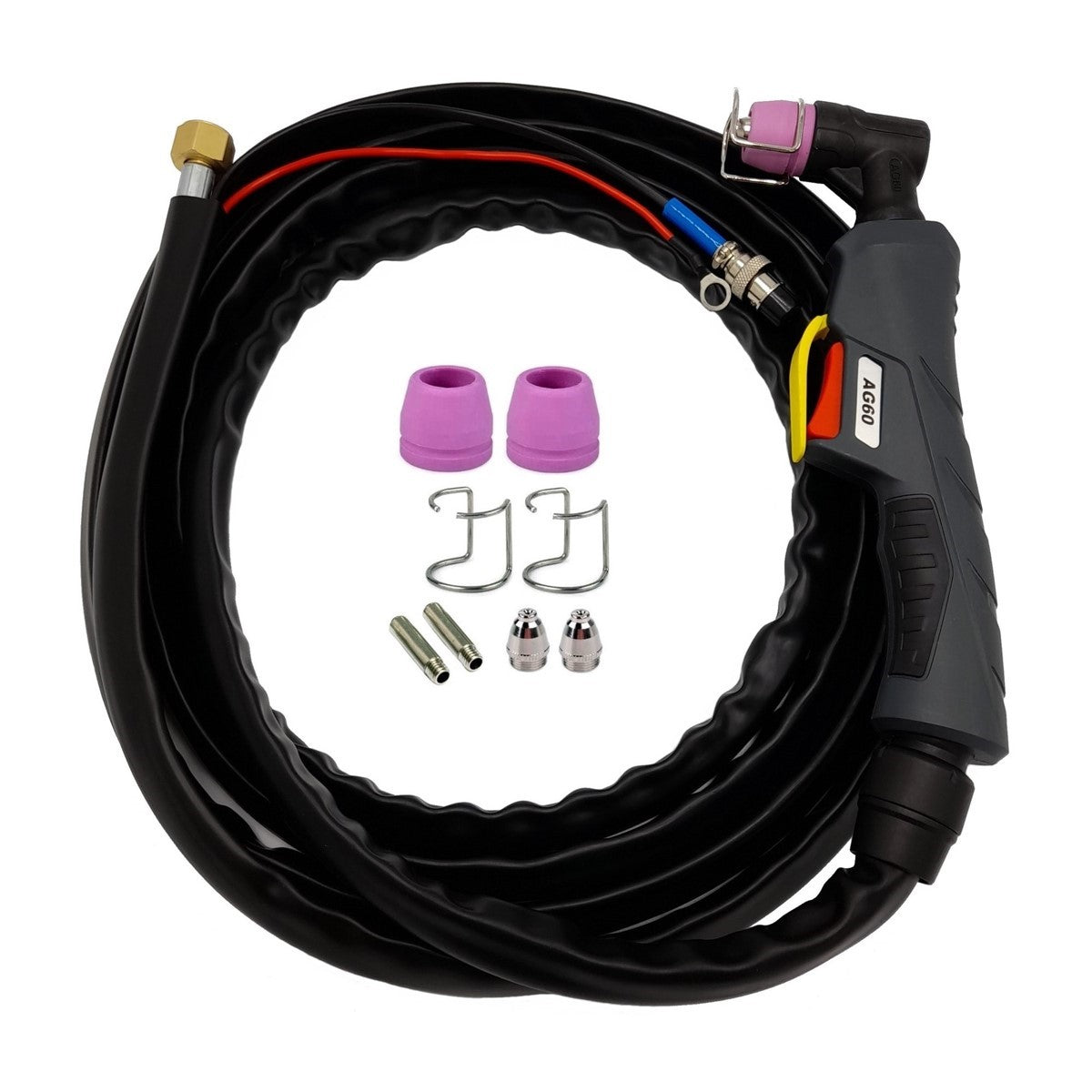

- Plasma torch, 4m
- Earth clamp, 2m
- Air hose, 2m
- Air pressure regulator
- 4x Hose clips
- 2x Torch consumables set
- Face mask
- Wire brush/hammer
- User manual
WHAT YOU NEED?
- Air compressor unit to operate approx. 65PSI (4.5kg/cm2) @ 3.5CFM
